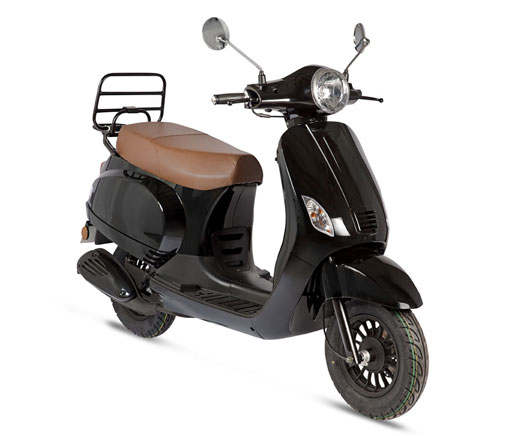

MAPLE II
COLOR:
  • parameter
  • concept
  • engine
  • Frame
  • technical equipment
  • Decals show
Engine style: 139QMB ,single-cylinder, 4-stroke, air-cooled
Borexstroke (mm): 39.0x41.5
Compression ratio: 10.5:1
Max power (kW/rpm): 2.5/7500
Economic fuel consumption: 2.0L/100km
Fuel tank: 5.0L
Overall dimensions (mm): 1830(L)x685(W)x1130(H)
Wheel base (mm):  1300
Net weight (kg): 105
Max load (kg): 75
Ground clearance (mm): 96
Max speed (kph): 50
Front tire:  3.50-10
Rear tire:  3.50-10
Brake type:  Front disc/Rear drum
Suspension: Front/Rear double shock absorber
