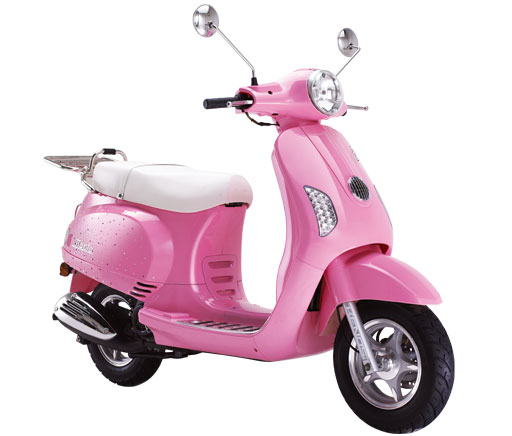

MAPLE I
Engine style: 157QMJ ,single-cylinder, 4-stroke, air-cooled
Borexstroke (mm): 57.4x57.8
Compression ratio: 9.2:1
Max power (kW/rpm): 7.0/7500
Economic fuel consumption: 2.9L/100km
Fuel tank: 5.0L
Overall dimensions (mm): 1830(L)x685(W)x1130(H)
Wheel base (mm):  1300
Net weight (kg): 105
Max load (kg): 150
Ground clearance (mm): 96
Max speed (kph): 85
Front tire:  3.50-10
Rear tire:  3.50-10
Brake type:  Front disc/Rear drum
Suspension: Front/Rear double shock absorber

COLOR:
Product Description
Specifications
Model: WY50QT-124 WY125T-30 WY150T-41
Top Speed (km/h): 50 80 85
Displacement(cc): 49.6 124.6 149.6
Max power  KW(r/rpm): 2.5/7500 5.6/7500 7.0/7500
Overall dimensions (mm): 1830(L)x685(W)x1130(H) 1830(L)x685(W)x1130(H) 1830(L)x685(W)x1130(H)
Economic fuel consumption(L/km): 2.0/100 2.8/100 2.9/100
Tank Capacity (L): 5 5 5
Wheel base (mm): 1300 1300 1300
Ground clearance (mm): 96 96 96
N.W./G.W.  (kg): 105/125 105/125 105/125
Front Tire: 3.50-10 3.50-10 3.50-10
Rear Tire: 3.50-10 3.50-10 3.50-10
Brake Type: Disc/Drum Disc/Drum Disc/Drum
